Model No: PL56
Place of Origin:China
Delivery time: 3-4 weeks
Supply ability: 1000PCS/week
Payment way: T/T, L/C, D/P, Western Union

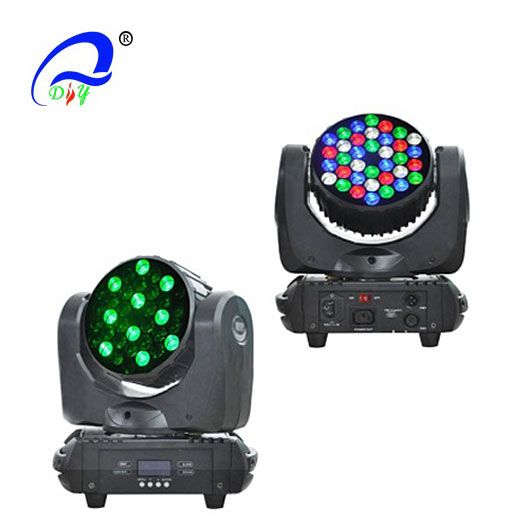

Description: Our LED Moving Head is a very small and smart light. But the brightness is very powerful. This product is designed and manufactured by our factory. It has swift sharp, graceful appearance,
Small volume, light weight features, but the light beam is very strong, and the stage effect is perfect.

Power Supply: AC100-240V, 50-60Hz
Power Consumption: 120W

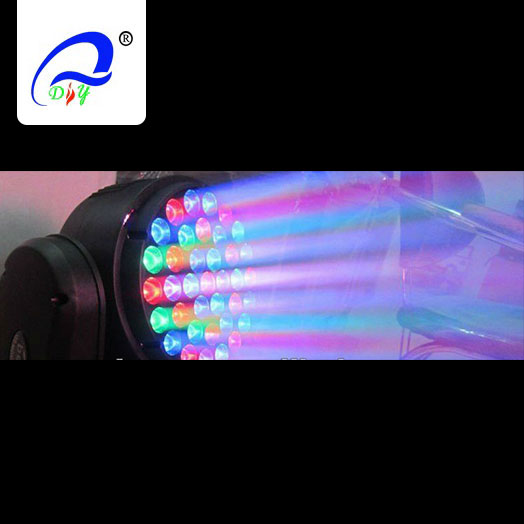

Light Source: 36pcs*3W High Brightness LED Lamps, (R: 12; G: 12; B: 12)
Effect: Excellent mixed color system;
           Smooth dimmer effect;
           High power and brightness, equipped 36PCS high power 3W LED Lamps; ;
           Tight, puissant and paralleled beam effect;
           Compact profile and silent circuit design;
           Swift pan and tile moving, silent and fast;
           With 4digital tube control display, can use and compatible the library data of MAC Aura;
           Standard DMX-512 communication protocol;
           Easy for power connection.
Beam Angle: 8 degree.
Dimmer: 0-100% smooth linear dimming
Strobe: effect with 1~25flashes per second and pulse effect
Pan: 540 degree  Tilt: 270 degree
Preset program: 8 built in programs can be called up via DMX controller
Control mode: DMX512, master-slave and sound activated controllable or auto operation
DMX Channel: 9/16DMX Channels

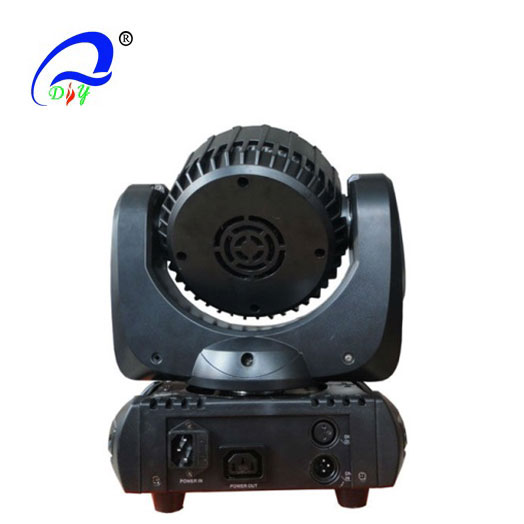

Connectors: 3 -pin XLR signal connector input and output
Control Panel: LCD display
Housing: Composite plastic(IP20)
Protection: Fan cooling ,over heat protection
Work environment: indoor-15°C-40°C
Function: Strobe, Dimmer, Color Changing,  Color Mixing
Cooling System: Low noise and efficient FAN cooling system
Carton Package:N.W: 6KG G.W:6.5KG Dimension: 304*267*167MM Packing: 325*250*410cm(1PCS/CTN)

Stage LED Moving Head Light    Beam Moving Light    Moving Head Disco Light
